Harnessing Solar Energy for Water Security
Our solar water pumping systems offer a sustainable and dependable solution for various water requirements. From agricultural irrigation to providing drinking water in remote communities, these systems utilize the sun's energy to deliver water where it's needed most. Say goodbye to high electricity bills and unreliable power grids, and embrace a clean, efficient, and low-maintenance water pumping solution.
Why Choose a Solar Water Pump?
Eco-Friendly
Runs on clean, renewable solar energy, reducing your carbon footprint.
Cost-Effective
Zero fuel costs and minimal maintenance lead to significant long-term savings.
Low Maintenance
Fewer moving parts than traditional pumps, ensuring durability and reliability.
Ideal for Remote Areas
Provides a reliable water source in off-grid locations where electricity is unavailable.

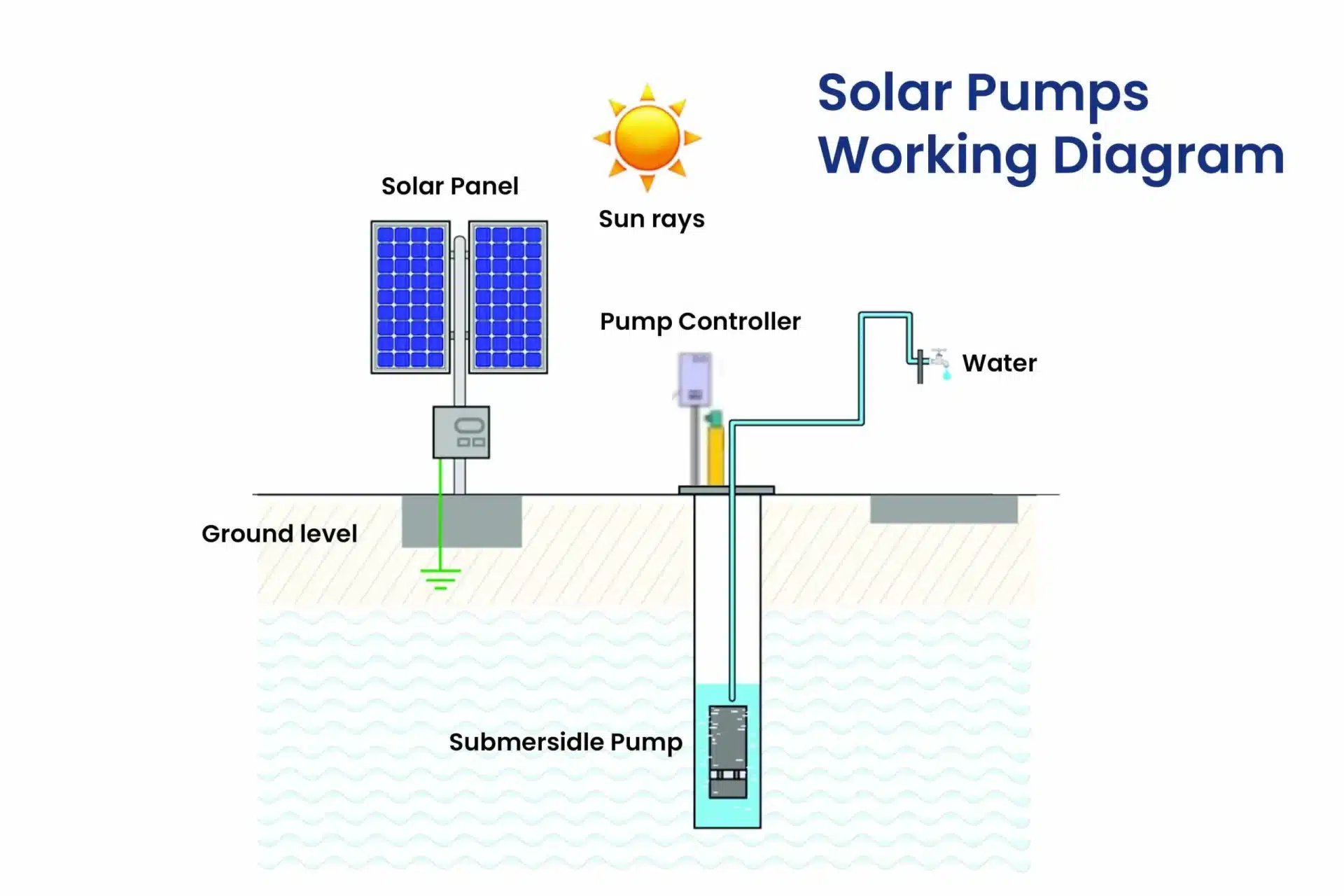

How It Works: A Simple & Efficient Process
- Sunlight to Power: Photovoltaic (PV) panels capture sunlight and convert it into DC electricity.
- Smart Control: The pump controller manages the electricity, protecting the pump and optimizing its performance.
- Water Pumping: The electricity powers the motor, which pumps water from the source (borewell, pond, river).
- Storage (Optional): Water can be pumped directly for irrigation or stored in a tank for later use.
Versatile Applications
Agriculture & Irrigation
Ensure a consistent water supply for crops, leading to increased yields and agricultural stability, independent of rainfall or grid power.
Drinking Water Supply
Provide clean and reliable drinking water to remote villages, communities, and households, improving health and quality of life.
Livestock Watering
A dependable solution for watering livestock on farms and ranches, ensuring animal health and productivity.
Government Subsidies: PM-KUSUM Scheme
The Pradhan Mantri Kisan Urja Suraksha evam Utthaan Mahabhiyan (PM-KUSUM) scheme by the Government of India makes solar pumps highly affordable for farmers.
Benefits for Farmers in Assam:
- Central Government Subsidy: 30% of the benchmark cost.
- Assam State Government Subsidy: Up to 40% of the cost.
- Farmer's Share: Pay as little as 30% of the total cost.
- Loan Availability: Bank loans can be availed to cover the farmer's share.
How to Apply:
- Contact your local District Agriculture Department.
- Submit the application with land records (patta), Aadhar card, and bank details.
- Choose an empanelled vendor like Omnis Solar for installation.
Components of a Solar Pumping System
Solar PV Panels
High-efficiency panels that convert sunlight into DC power.
Water Pump
Submersible or surface pump designed for high efficiency with solar power.
Pump Controller
The brain of the system that manages power and protects the pump.
Mounting Structure
Durable, rust-proof structure to securely hold the solar panels.
Technical Specifications & Selection Charts
| SELECTION CHART FOR 75mm (3") SUBMERSIBLE PUMPSETS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Performance chart at 2900 rpm, 80/160v, three phase, 50Hz AC/DC. Supply. (mini. Bore dia-80mm) (max. pump dia-74mm) MATERIAL OF CONSTRUCTION IMPELLER : NORYL, DIFFUSER : NORYL 1HP 80/160V – OIL FILLED OUTLET SIZE : 32mm ( 1 1/4” ) 2800RPM | ||||||||||||
| PUMP MODEL | STAGES | HP | kW | DISCHARGE | ||||||||
| M3/hr | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | ||||
| SSP3-07 | 7 | 1.0 | 0.75 | HEAD IN METERS | 21 | 27 | 26 | 24 | 21 | 19 | 16 | 14 |
| SSP3-10 | 10 | 1.0 | 0.75 | 41 | 39 | 37 | 35 | 30 | 27 | 23 | 20 | |
| SSP3-12 | 12 | 1.0 | 0.75 | 49 | 47 | 44 | 41 | 36 | 32 | 28 | 24 | |
| SSP3-15 | 15 | 1.0 | 0.75 | 69 | 62 | 55 | 52 | 45 | 41 | 35 | 30 | |
| SSP3-20 | 20 | 1.0 | 0.75 | 82 | 77 | 73 | 69 | 60 | 54 | 46 | 40 | |
| SELECTION CHART FOR 100mm (4") SUBMERSIBLE PUMPSETS - 1HP | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Performance chart at 2900 rpm, 80/160v, three phase, 50Hz AC/DC. Supply. (mini. Bore dia-110mm) (max. pump dia-98mm) MATERIAL OF CONSTRUCTION IMPELLER : NORYL, DIFFUSER : NORYL 1HP 80/160V – OIL FILLED OUTLET SIZE : 32mm ( 1 1/4” ) 2800RPM | ||||||||||||
| PUMP MODEL | STAGES | HP | kW | DISCHARGE | ||||||||
| M3/hr | 0 | 0.9 | 1.2 | 1.8 | 2.4 | 2.7 | 3 | 3.6 | ||||
| SSP3-07 | 7 | 1.0 | 0.75 | HEAD IN METERS | 45 | 35 | 30 | 25 | 20 | 15 | 10 | 5 |
| SSP3-10 | 9 | 1.0 | 0.75 | 60 | 50 | 45 | 40 | 35 | 30 | 25 | 15 | |
| SSP3-12 | 10 | 1.0 | 0.75 | 65 | 55 | 50 | 45 | 40 | 35 | 30 | 20 | |
| SSP3-15 | 12 | 1.0 | 0.75 | 75 | 65 | 60 | 55 | 50 | 45 | 40 | 30 | |
| SSP3-20 | 15 | 1.0 | 0.75 | 90 | 80 | 75 | 70 | 65 | 55 | 50 | 45 | |
| SELECTION CHART FOR 100mm (4") SUBMERSIBLE PUMPSETS - 2HP | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Performance chart at 2900 rpm, 160v, three phase, 50Hz AC/DC. Supply. (mini. Bore dia-110mm) (max. pump dia-98mm) MATERIAL OF CONSTRUCTION IMPELLER : NORYL, DIFFUSER : NORYL 2HP 160V – OIL FILLED OUTLET SIZE : 32/38/50mm 2800RPM | |||||||||||||
| PUMP MODEL | STAGES | HP | kW | DISCHARGE | |||||||||
| M3/hr | 0 | 1.8 | 2.4 | 3.0 | 3.6 | 3.9 | 4.5 | 4.8 | |||||
| SSP3-08 | 8 | 2.0 | 1.5 | HEAD IN METERS | 50 | 40 | 35 | 25 | 20 | 15 | 10 | 5 | |
| SSP3-12 | 12 | 2.0 | 1.5 | 75 | 65 | 60 | 50 | 40 | 30 | 20 | 10 | ||
| SSP3-15 | 15 | 2.0 | 1.5 | 90 | 80 | 75 | 65 | 55 | 45 | 35 | 25 | ||
| SSP3-18 | 18 | 2.0 | 1.5 | 100 | 90 | 85 | 75 | 65 | 55 | 45 | 35 | ||
| SSP3-22 | 22 | 2.0 | 1.5 | 135 | 110 | 105 | 95 | 85 | 75 | 65 | 55 | ||
| SELECTION CHART FOR 100mm (4") SUBMERSIBLE PUMPSETS - 3HP | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Performance chart at 2900 rpm, 230v, three phase, 50Hz AC/DC. Supply. (mini. Bore dia-110mm) (max. pump dia-98mm) MATERIAL OF CONSTRUCTION IMPELLER : NORYL, DIFFUSER : NORYL 3HP 230V – OIL FILLED OUTLET SIZE : 32/38/50mm 2800RPM | |||||||||||||
| PUMP MODEL | STAGES | HP | kW | DISCHARGE | |||||||||
| M3/hr | 0 | 1.8 | 3 | 3.6 | 4.2 | 4.8 | 5.4 | 7.8 | |||||
| SSP3-08 | 8 | 3.0 | 2.2 | HEAD IN METERS | 48 | 38 | 30 | 25 | 20 | 15 | 10 | 5 | |
| SSP3-12 | 12 | 3.0 | 2.2 | 75 | 65 | 55 | 45 | 35 | 25 | 15 | 5 | ||
| SSP3-15 | 15 | 3.0 | 2.2 | 90 | 80 | 70 | 60 | 50 | 40 | 30 | 20 | ||
| SSP3-18 | 18 | 3.0 | 2.2 | 110 | 100 | 90 | 80 | 70 | 60 | 50 | 40 | ||
| SSP3-22 | 22 | 3.0 | 2.2 | 125 | 115 | 105 | 95 | 85 | 75 | 65 | 55 | ||
| SELECTION CHART FOR 150mm (6") SUBMERSIBLE PUMPSETS - 5HP | ||||||
|---|---|---|---|---|---|---|
| 5HP 380V – WATER FILLED OUTLET SIZE : 38/50/65/75/100mm 2800RPM | ||||||
| PUMP HP/STAGE | HEAD(meter) / DISCHARGE (LPM) | |||||
| 5/2 | 20/570 | 19/670 | 18/720 | 17/770 | 15/870 | 11/1070 |
| 5/3 | 33/400 | 30/470 | 27/530 | 24/560 | 22/610 | 18/680 |
| 5/5 | 53/200 | 50/230 | 45/290 | 40/320 | 37/340 | 27/400 |
| 5/5 | 55/150 | 53/190 | 50/240 | 45/290 | 40/320 | 37/355 |
| 5/4 | 48/170 | 44/245 | 40/320 | 36/370 | 32/420 | 24/520 |
| 5/6 | 66/100 | 63/160 | 57/220 | 54/250 | 48/290 | 45/305 |
| 5/8 | 88/70 | 84/120 | 80/140 | 72/170 | 64/190 | 60/210 |
| SELECTION CHART FOR 150mm (6") SUBMERSIBLE PUMPSETS - 7.5HP | ||||||
|---|---|---|---|---|---|---|
| 7.5HP 380V – WATER FILLED OUTLET SIZE : 38/50/65/75/100mm 2800RPM | ||||||
| PUMP HP/STAGE | HEAD(meter) / DISCHARGE (LPM) | |||||
| 7.5/3 | 30/560 | 28/760 | 27/710 | 25/770 | 22/870 | 16/1070 |
| 7.5/6 | 72/170 | 66/245 | 60/320 | 54/360 | 45/440 | 36/520 |
| 7.5/8 | 88/150 | 84/190 | 80/240 | 76/270 | 64/320 | 60/355 |
| 7.5/10 | 110/110 | 105/160 | 100/190 | 95/220 | 80/290 | 75/305 |
| 7.5/12 | 132/70 | 126/120 | 120/140 | 114/150 | 96/190 | 90/210 |
| 7.5/14 | 147/20 | 140/55 | 133/80 | 126/120 | 105/170 | 91/205 |
| 7.5/18 | 180/20 | 171/40 | 162/70 | 153/100 | 135/130 | 117/155 |
| 7.5/24 | 228/15 | 216/40 | 192/70 | 180/90 | 156/130 | 132/150 |
| SELECTION CHART FOR 150mm (6") SUBMERSIBLE PUMPSETS - 10HP | ||||||
|---|---|---|---|---|---|---|
| 10HP 380V – WATER FILLED OUTLET SIZE : 38/50/65/75/100mm 2800RPM | ||||||
| PUMP HP/STAGE | HEAD(meter) / DISCHARGE (LPM) | |||||
| 10/3 | 25/1100 | 23/1200 | 21/1300 | 19/1400 | 16/1500 | 13/1600 |
| 10/4 | 39/700 | 34/900 | 29/1100 | 26/1200 | 23/1300 | 19/1400 |
| 10/5 | 46/700 | 43/800 | 39/900 | 33/1000 | 25/1100 | 16/1200 |
| 10/6 | 50/600 | 46/700 | 40/800 | 36/900 | 30/1000 | 22/1200 |
| 10/7 | 73/300 | 69/400 | 66/475 | 61/550 | 55/700 | 46/800 |
| 10/8 | 98/100 | 86/200 | 77/300 | 73/350 | 65/400 | 51/500 |
| 10/9 | 98/100 | 98/100 | 90/250 | 85/300 | 73/400 | 57/500 |
| 10/10 | 105/100 | 95/200 | 90/250 | 85/300 | 73/400 | 57/500 |
| 10/12 | 132/140 | 120/220 | 114/250 | 108/280 | 96/310 | 90/335 |
| 10/16 | 176/100 | 160/170 | 152/180 | 144/200 | 127/220 | 120/240 |
| 10/24 | 240/50 | 216/100 | 204/120 | 192/140 | 180/160 | 156/185 |
| SELECTION CHART FOR OPENWELL PUMPSETS | |||||
|---|---|---|---|---|---|
| MODEL | KW/HP | SUCTION/DELIVERY | HEAD IN METER DISCHARGE IN LPM | ||
| S3-OP-V7 | 2.2/3.0 | 65*50 mm | 15 (50) | 22 (73) | 26 (86) |
| S3-OP-V8 | 2.2/3.0 | 65*50 mm | 12 (39) | 20 (66) | 25 (82) |
| S5-OP-V7 | 3.7/5.0 | 65*50 mm | 22 (72) | 28 (92) | 32 (105) |
| S5-OP-V7 | 3.7/5.0 | 65*50 mm | 30 (100) | 35 (115) | 40 (131) |
| S7.5-OP-V8 | 5.5/7.5 | 65*50 mm | 27 (89) | 40 (132) | 44 (145) |
| S7.5-OP-V9 | 5.5/7.5 | 65*50 mm | 23 (76) | 30 (100) | 37 (122) |
| S10-OP-V9 | 7.5/10 | 65*50 mm | 36 (119) | 45 (150) | 52 (172) |
| S10-OP-V9 | 7.5/10 | 65*50 mm | 28 (92) | 33 (110) | 37 (122) |
| SELECTION CHART FOR MONOBLOCK PUMPSETS | ||||||
|---|---|---|---|---|---|---|
| MODEL | HP/KW | VOLT/AMP | WATT | SUCTION DELIVERY | HEAD IN METER | LPM |
| SSP-SM-1 | 1.0/0.75 | 160V / 4.5A | 1000 W | 40*40 mm | 13 m | 160 |
| SSP-SM-2 | 2.0/1.5 | 160V / 8A | 2000W | 50*50 mm | 15 m | 250 |
| SSP-SM-3 | 3.0/2.2 | 230A / 8A | 3000W | 80*80 mm | 16 m | 550 |
| SSP-SM-5 | 5.0/3.7 | 380V / 8A | 5000W | 100*100 mm | 13 m | 1500 |
| SSP-SM-7.5 | 7.5/5.5 | 320V / 16A | 7500W | 65*65 mm | 22 m | 1100 |
| SSP-SM-10 | 10/7.5 | 380V / 17A | 10000W | 65*65 mm | 35m | 750 |
Frequently Asked Questions
The irrigation area depends on the pump's capacity (HP), water table depth, and the type of crop. As a general guideline, a 1 HP pump can irrigate about 1 acre, a 3 HP pump can cover 3-4 acres, and a 5 HP pump can manage around 5-8 acres.
The pump's output will be reduced on cloudy days. However, it will still operate, albeit at a lower capacity. These systems are designed to work effectively even with moderate sunlight. For critical applications, a water storage tank is recommended.
Solar panels typically have a lifespan of 25 years with performance warranties. The pump and controller are built for durability and can last for over 10 years with minimal maintenance.
